Convenient and Efficient Power Management for 1/8 Scale Racing

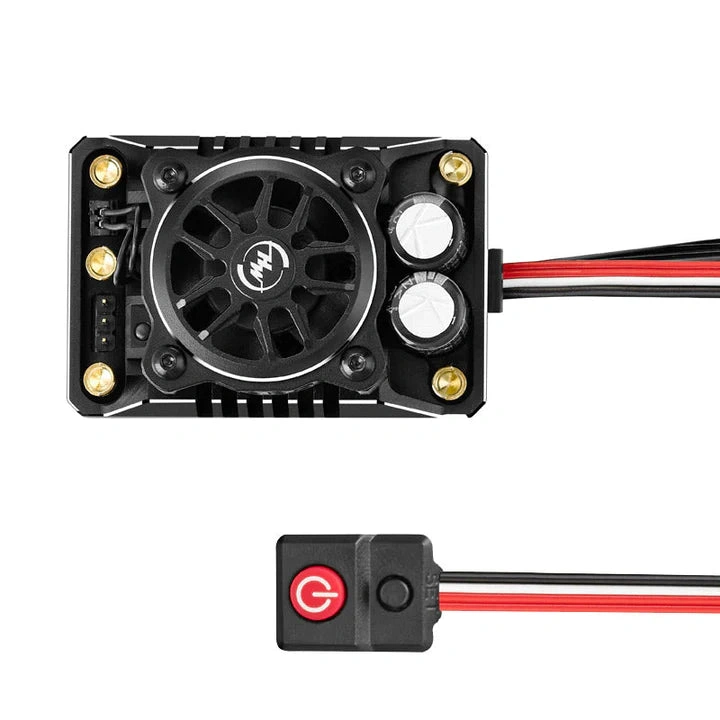

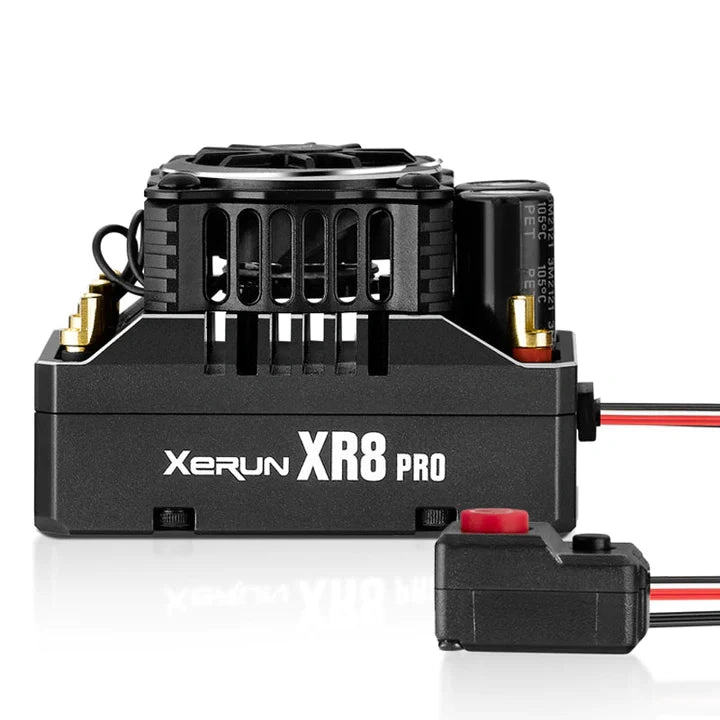

Introducing the XR8 Pro G3 ESC, a compact and highly capable power management solution for 8th scale racing applications. This latest version boasts a reduction in size, making it 1.3mm shorter and 5.3mm narrower than its predecessor, ultimately shrinking the overall footprint by approximately 15%.
Key Features:
1. **Dual Brake Mode:**
The innovative closed-loop torque brake control mode, known as the disc brake mode, overcomes non-linear force issues associated with traditional braking methods. It ensures precise and linear braking force output, akin to real car disc brakes. The mode allows adjustment of braking force curvature and distribution between front and rear sections while retaining the traditional braking mode for familiar control.
2. **Enhanced Cooling Efficiency:**

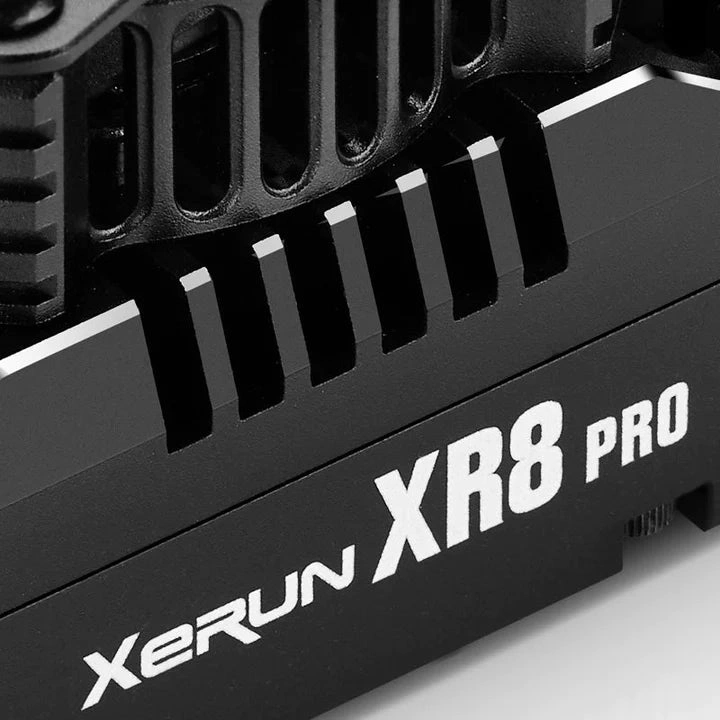

Innovative hardware design and smart freewheeling technology combine to elevate drive efficiency and lower operating temperatures. Compared to the XR8 Pro G2, this advancement results in a notable 15°C reduction in maximum temperature, guaranteeing a stable and reliable ESC performance.

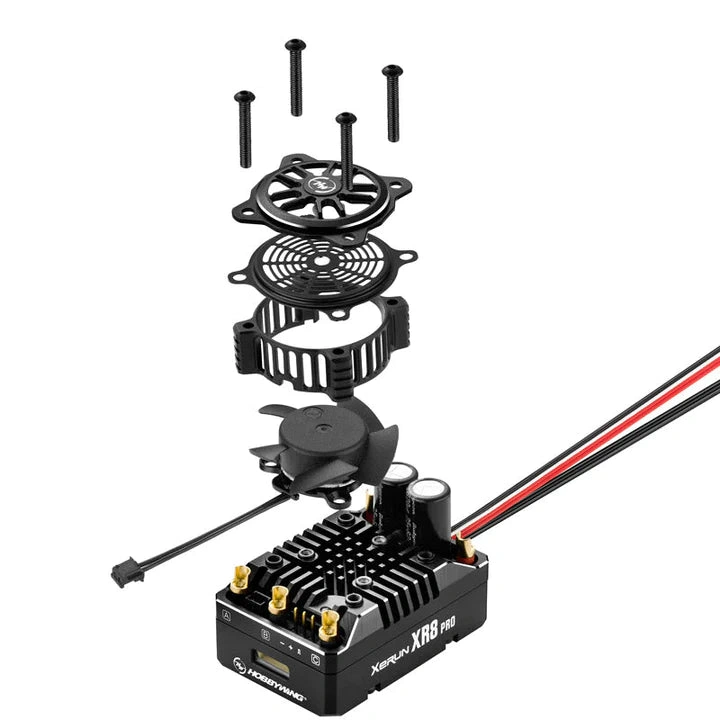

3. **Frameless Fan for Durability:**
The frameless fan blade, made from specially formulated material, significantly reduces fan defects caused by small debris impact, ensuring durability and longevity.
4. **Intelligent Fan Start/Stop:**
Featuring an intelligent fan start/stop function, the ESC fan activates only when the temperature reaches a preset threshold, minimizing noise and power consumption while maintaining an optimal operating temperature range.
5. **Boost & Turbo Timing Technology:**
The XR8 Pro G3 ESC, optimized for HOBBYWING motors, incorporates Turbo Timing technology, similar to the XR10 Pro series, providing a performance boost of up to 48 degrees. Recommended for use with the new HOBBYWING 4268/4274 G3 motors for a 50% performance increase.
6. **Advanced Protections and Data Monitoring:**
The ESC is equipped with various protections, including reverse polarity protection and capacitor thermal protection. Additionally, real-time data recording functionality offers a comprehensive view of the ESC's power running status.
7. **Superior Dustproof and Quality Wiring:**
The ESC boasts IP5X rated superior dustproof protection and uses custom ultra-soft 11AWG silicone wire, enhancing flexibility and reducing resistance.
In Summary:
The XR8 PRO G3 ESC provides three versatile profiles suitable for all 1/8 Racing applications, ensuring easy selection and usage. With 32 adjustable parameters and support for firmware upgrades, this ESC offers immense flexibility to meet diverse power requirements. Additionally, the built-in switch mode BEC offers adjustable voltage options, providing convenience for various devices. The ESC's data logging function and compatibility with the HW LINK app via OTA Bluetooth module offer valuable insights and performance evaluation capabilities to users. Enjoy the latest features and enhancements in power management with the XR8 Pro G3 ESC.
